Features + advantages

  • Ideal for on-site use thanks to 55° steering angle
  • 12-t axle approval for maximum payload
  • Perfect road holding even at low driving heights and high load centres of gravity
  • Hydraulic axle balancing ensures that platform remains horizontal at all times
  • Easy control of steering and driving level via keypads and DOLL connect radio remote control
  • High-quality, low-wear components
  • Minimal wear on bearing points and other performance components
Five-year warranty

The panther Plus package

Our low maintenance and wear costs have been proven across more than 250 million kilometres of driving! This is why we give you a five-year warranty on the upper and lower linkage chassis components, bearings, cylinder supports and all frame components, plus a three-year warranty on the suspension cylinders.

"When it comes to quality and performance, DOLL panther axle technology is the perfect match for current needs in the heavy haulage market".

Georg Tietz, Managing Director, Hegmann Transit GmbH & Co. KG

10 years of DOLL panther: the milestones

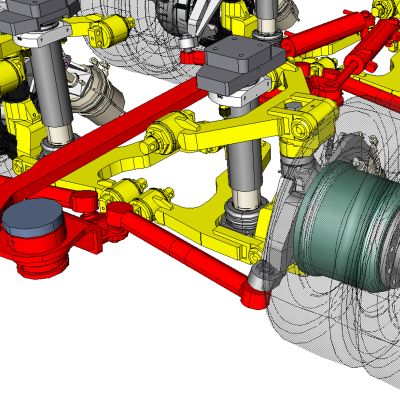

DOLL panther independent wheel suspension

Highest quality "made in Germany"

Since its market launch, we've been producing all components of our panther axle technology to the highest standards of quality at our site in Oppenau – right down to the machining of the bolt-mounting surfaces.

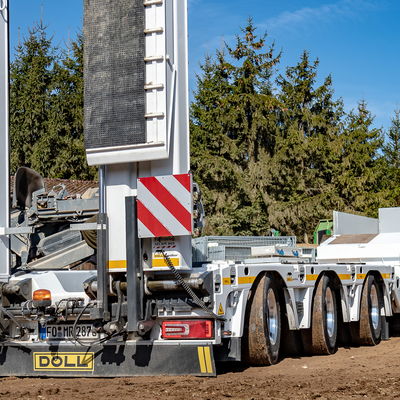

Minimum loading height

Even with threefold telescopic extension, your trailer with panther axles boasts a loading height of just 780 mm – enabling you to transport even taller loads within the legal limits.

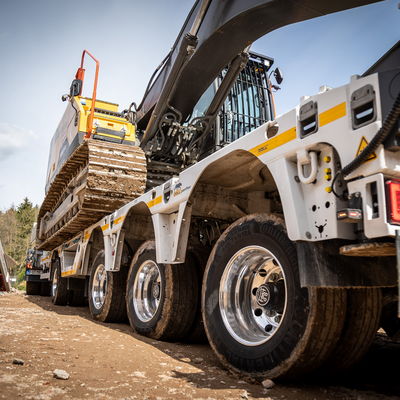

Generous total stroke

A low drive level of 850 mm (loaded) and a total stroke of 315 mm (-70 mm/+245 mm) maximise floor clearance.

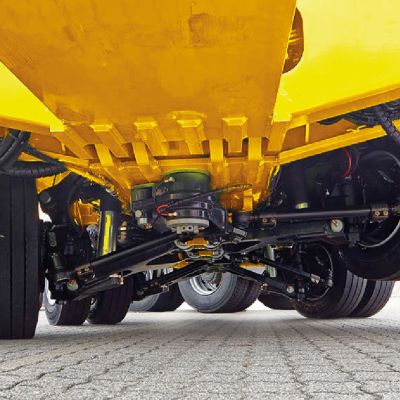

Lift axle function

Each of the axles can be fitted with the lift function as an additional feature. The lift function saves fuel on empty trips and is kind to your tyres.

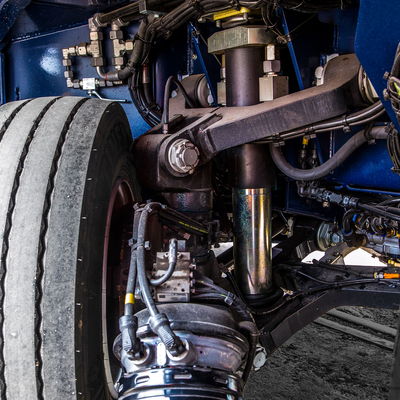

Easy wheel changing

The tyres are easy to replace from the outside, just like with a rigid axle. Thanks to the jack function, there is no need for additional tools either.

Manoeuvrability

  • Ideal for on-site use thanks to a maximum steering angle of 55°.
  • Easy manoeuvring in tight spaces and on challenging terrain.
  • Extra safety thanks to manual remote oversteering

Cost-effectiveness

  • Low tyre wear – even after millions of kilometres of driving, daily use and frequently encountering extreme driving conditions.
  • Payload gain of up to 30 % thanks to low deadweight and 12-t axle load.

Durability

  • High-quality, low-wear components and DOLL high-precision manufacturing quality.
  • More than 6,500 axles on the market – and no complaints.

Directional stability

  • Regardless of the length and weight of your load, your vehicle will go exactly where you want it to –
  • with zero lateral tilt even when turning into bends.
  • Outstanding directional stability even if your load has an eccentric centre of gravity.

Electronic assistance systems

Our intelligent electronic assistance systems use innovative CAN bus technology to make complex everyday tasks easier.

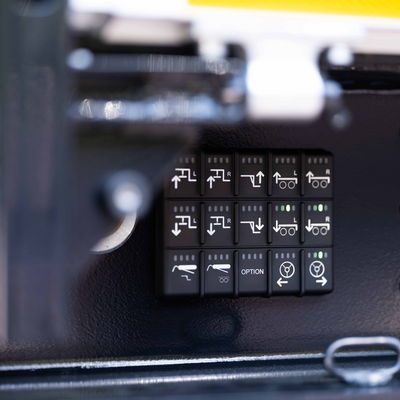

Perfectly synchronised: DOLL panther and DOLL tronic
With the help of the sensor technology in our innovative CAN bus system, you can control the central panther functions of remote steering and driving height.

Maximum operator comfort: DOLL connect
Using the intelligent radio remote control, you can adjust driving level and steering angle from behind the wheel – conveniently, safely and with just one button.

On the right track with DOLL EEP
Whether you're negotiating winding tracks or motorway slip roads, the EEP track adjustment system determines the correct steering angle for the axles. All you have to do is press a button on your radio remote control – and the vehicle automatically does the rest.

Our mission to be one step ahead

In our research and development department, 35 engineers create intelligent details and complete solutions for the vehicles of tomorrow – driven by the mission of being one step ahead.
